Elektrogas Safety Shut-Off Valves with Hydraulic Actuator VMH Series

Elektrogas Safety Shut-Off Valves with Hydraulic Actuator VMH Series

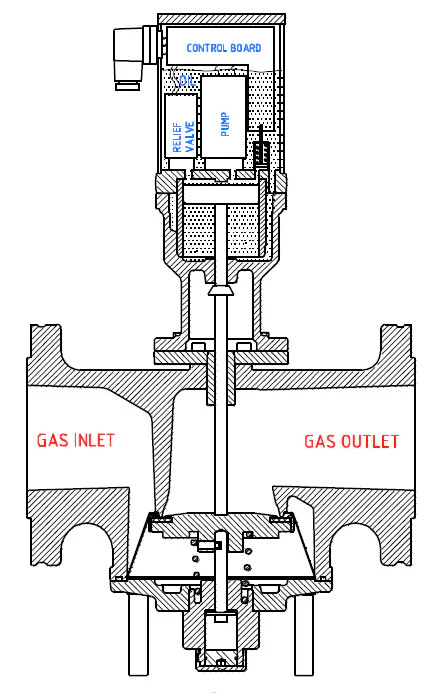

Elektrogas Safety Shut-Off Valves with Hydraulic Actuator VMH Series - Image 2

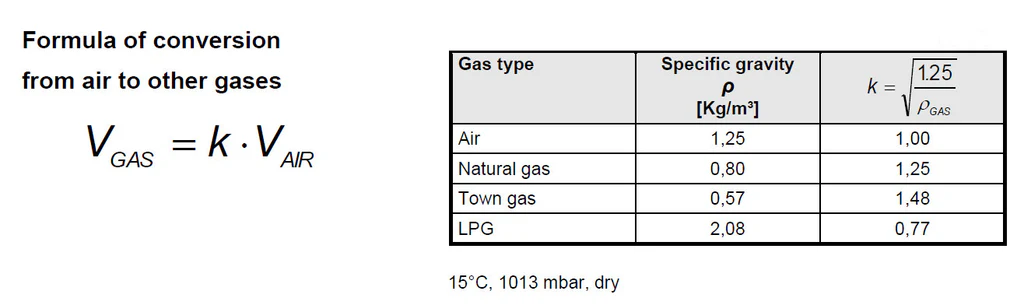

Elektrogas Safety Shut-Off Valves with Hydraulic Actuator VMH Series - Image 3

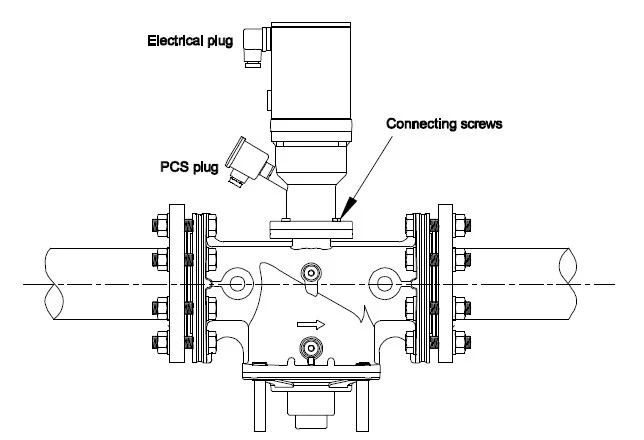

Elektrogas Safety Shut-Off Valves with Hydraulic Actuator VMH Series - Image 4

Brand Elektrogas
Model Safety Shut-Off Valves with Hydraulic Actuator VMH Series
Specification Technical Specifications
• Connections: Flanged PN16 – ISO 7005 (DN65 – DN300)
• Voltage Rating: 230 VAC or 110 VAC (50/60 Hz), tolerance -15% to +10%
• Power Consumption: DN65–DN200 = 20VA (Start 110W); DN250–DN300 = 25VA (Start 115W)
• Operating Temperature: -15°C to +60°C
• Filter: 600 μm metal mesh
• Protection Class: IP65 (EN 60529)
• Cable Gland: ISO 4400 plug with PG9 cable gland
• Materials in Contact with Gas: Aluminum alloy, Brass, Stainless steel, Plated steel, Anaerobic adhesive, NBR, FPM, PTFE

Key Features & Benefits
• High-quality aluminum alloy body for durability & corrosion resistance
• Available in flanged sizes DN65 – DN300 (Group 2 standards)
• Suitable for air & non-aggressive gases (EN 437 Families 1–3); special versions for aggressive gases
• Fail-safe design: remains open when energized, closes on power loss
• Continuous duty (100% ED) for heavy-duty use
• Adjustable flow control on DN65 & DN80 sizes
• Integrated 600 μm mesh filter for valve & downstream protection
• G1/4 pressure gauge ports on inlet & outlet chambers
• Hydraulic actuator with ISO 4400 plug & LED status indicator
• IP65 protection against dust & water ingress (EN 60529)
• 100% factory-tested & warranty-backed for reliability
