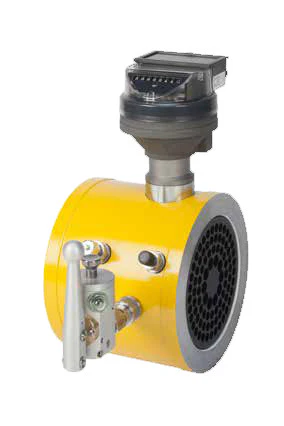

FMG Turbine Gas Meters FMT-S Series
| Brand | FMG |
|---|---|
| Model | Rotary Gas Meters – Mid Capacity Series |
| Technical Specifications |

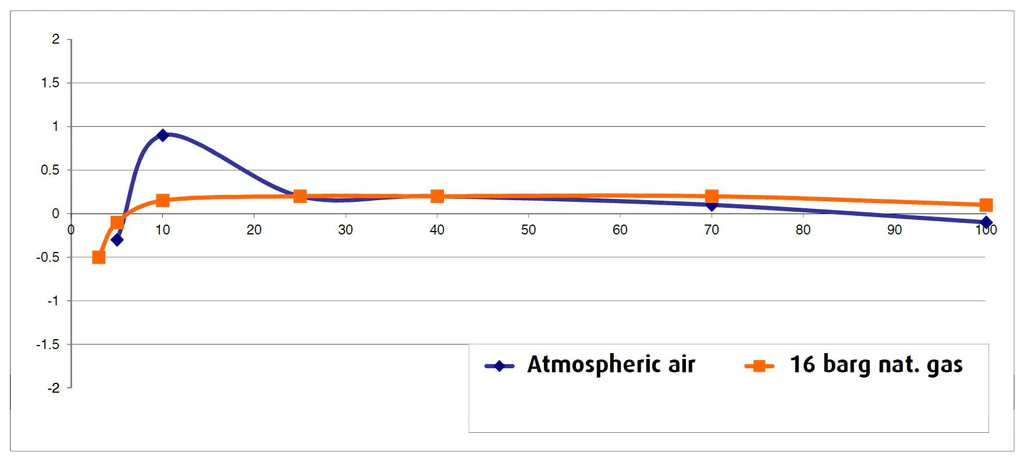

• Flow Range: 3 – 25,000 m³/h • Diameters: DN50 – DN600 (2”–24”) • Pressure Ratings: PN 10–100, ANSI 150–600 • Max Working Pressure: Up to 100 bar (depending on body/flanging) • Mounting: Horizontal or vertical • Temperature Range: ATEX -25°C to +70°C, MID -25°C to +70°C, PED -20°C to +70°C (lower options on request) • Approvals: EN12261:2002, EN12261:A1-2006, OIML R137 1&2 (2014), MID 2014/32/EU, PED 2014/68/EU • ATEX Certification: Sensors Ex ia IIC T4…T6 Gb (-40°C to +70°C), Encoder Ex ib IIB T3…T6 Gb (-25°C to +55°C) • Materials: Aluminum/steel body, optional low-temperature steel, stainless steel shafts & bearings, POM gears, polycarbonate index cover • Accuracy: ±1% (0.2 Qmax–Qmax), ±2% (Qmin–0.2 Qmax), Repeatability <0.1% |
| Key Features |

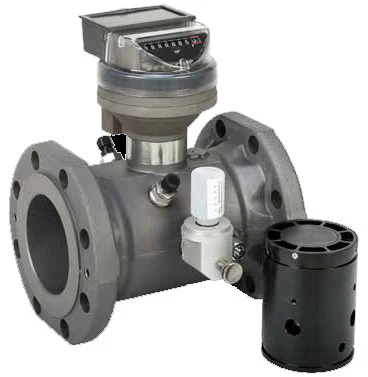

• Compact short-length design with removable cartridge • Requires only 1x DN straight inlet section • Lifetime lubrication with oil flushing system • Tamper-proof IP67 sealed index for security • Multipurpose exchangeable index for flexible use • Certified EN 549 seals for gas appliances • Durable construction for industrial applications |
