Gastech Low Pressure Gas Regulator (R Series)
| Brand | Gastech |
|---|---|
| Model | R Series Gas Pressure Regulator |

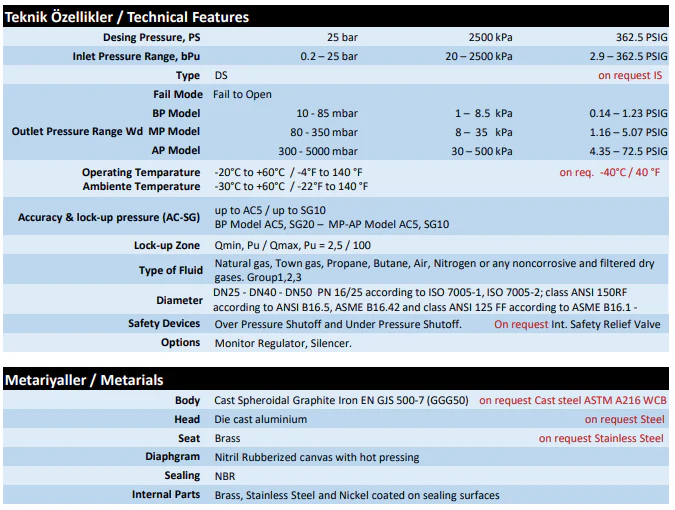

| Technical Specifications | • Design Pressure: 25 bar (362.5 PSIG) • Inlet Pressure Range: 0.2 – 25 bar (2.9 – 362.5 PSIG) • Outlet Pressure Ranges:- BP Model: 10 – 85 mbar (4 – 34 in. w.c.) – MP Model: 85 – 350 mbar (1.2 – 5.0 PSIG) – AP Model: 300 – 5000 mbar (5 – 72.5 PSIG) – Body: Cast Spheroidal Graphite Iron EN GJS 500-7 (option: ASTM A216 WCB) – Head: Die-cast Aluminium (option: Stainless Steel) – Diaphragm: Nitrile Rubberized Canvas – Internals: Brass, Stainless Steel, Nickel-coated seals |

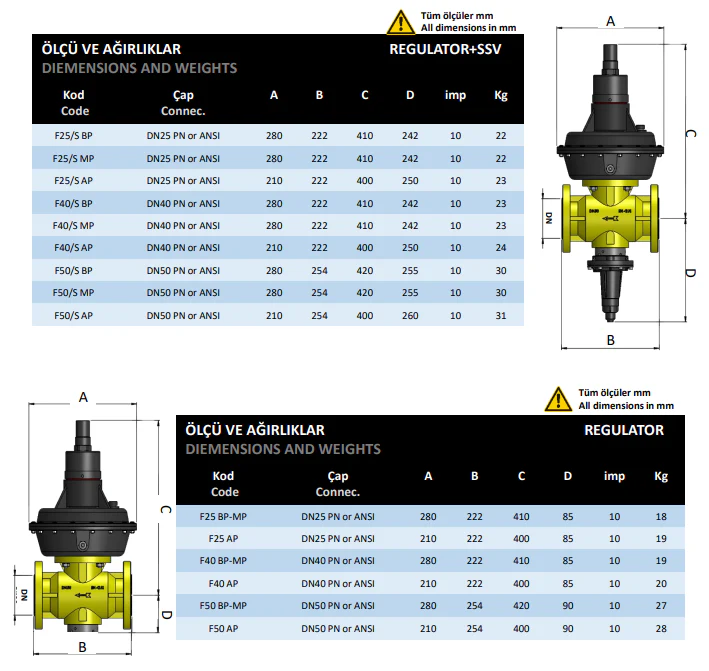

| Dimensions & Weights | Gastech R Series Dimensions Example Sizes: • F25/5 AP – DN25 – 18 kg • F40/5 AP – DN40 – 23 kg • F50/5 AP – DN50 – 28 kg (Refer to datasheet for full dimensions & weights) |
| Key Features & Benefits | • High Flow Rate Coefficient – Ensures consistent and reliable gas flow, even under high demand. • Exceptional Accuracy – Maintains precise outlet pressure regulation across operating ranges. • Rapid Response Time – Direct-acting design ensures fast reaction to pressure fluctuations. • Zero Internal Leakage – Prevents gas loss at zero flow, improving safety and efficiency. • Easy Maintenance – Serviceable without removing regulator from pipework, minimizing downtime. |
