Gnali Bocia Shut-Off Valves VB100-300-500 Series
| Brand | Gnali Bocia |
|---|---|
| Model / Series | VB100 / VB300 / VB500 Shut-Off Valves |
| Technical Specifications | • Nominal Diameters: VB100 – 1” (DN25), VB300 – 1½” (DN40), VB500 – 2” (DN50) • Operating Pressure Range: BP-MP: 0.5 – 10 bar (7.5 – 145 psi); TR: 0.5 – 20 bar (7.5 – 290 psi) • Setting Pressure Range: 6 – 5800 mbar (0.09 – 84 psi) • Design Pressure: 20 bar (290 psi) • Operating Temperature: -20°C to +60°C • Gas Compatibility: Natural gas, LPG, town gas, nitrogen, air, and other non-corrosive gases • Connections: Threaded – EN 10226 or NPT; Flanged – UNI (PN) or ANSI • Regulatory Compliance: EN 14382:2009 / PED 2014/68/EU |

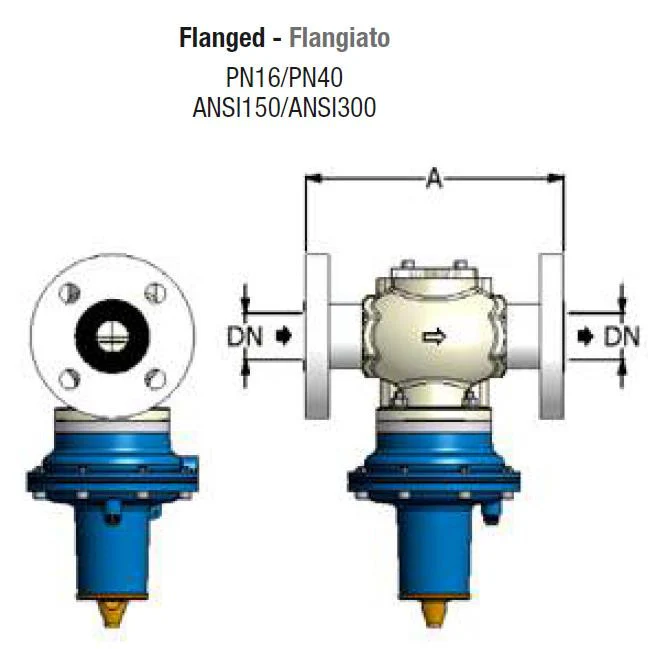

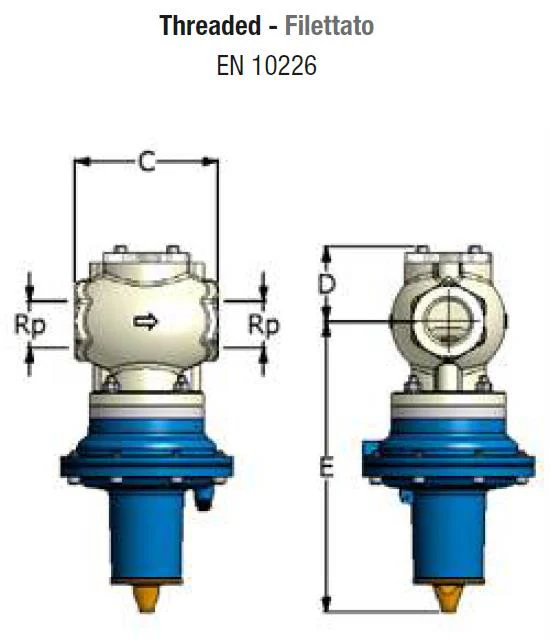

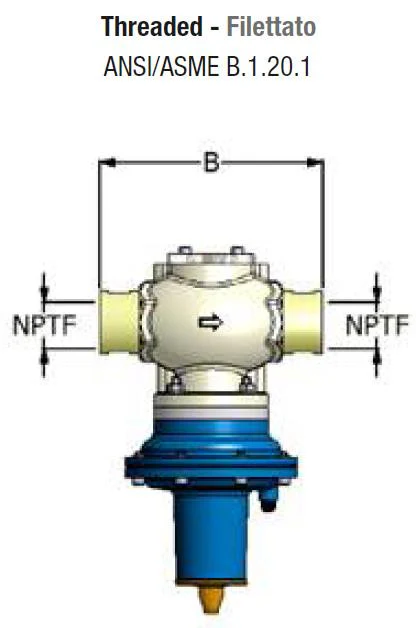

| Dimensions & Weight | VB100 • Flanged DN25×DN25: 183 × 55 × 205 mm – 6.5 kg • Threaded NPTF 1”×1”: 156 mm – 4.0 kg • Threaded Rp 1”×1”: — – 3.5 kgVB300 • Flanged DN40×DN40: 223 × 65 × 215 mm – 10.0 kg • Threaded NPTF 1½”×1½”: 186 mm – 5.5 kg • Threaded Rp 1½”×1½”: — – 4.5 kg VB500 |

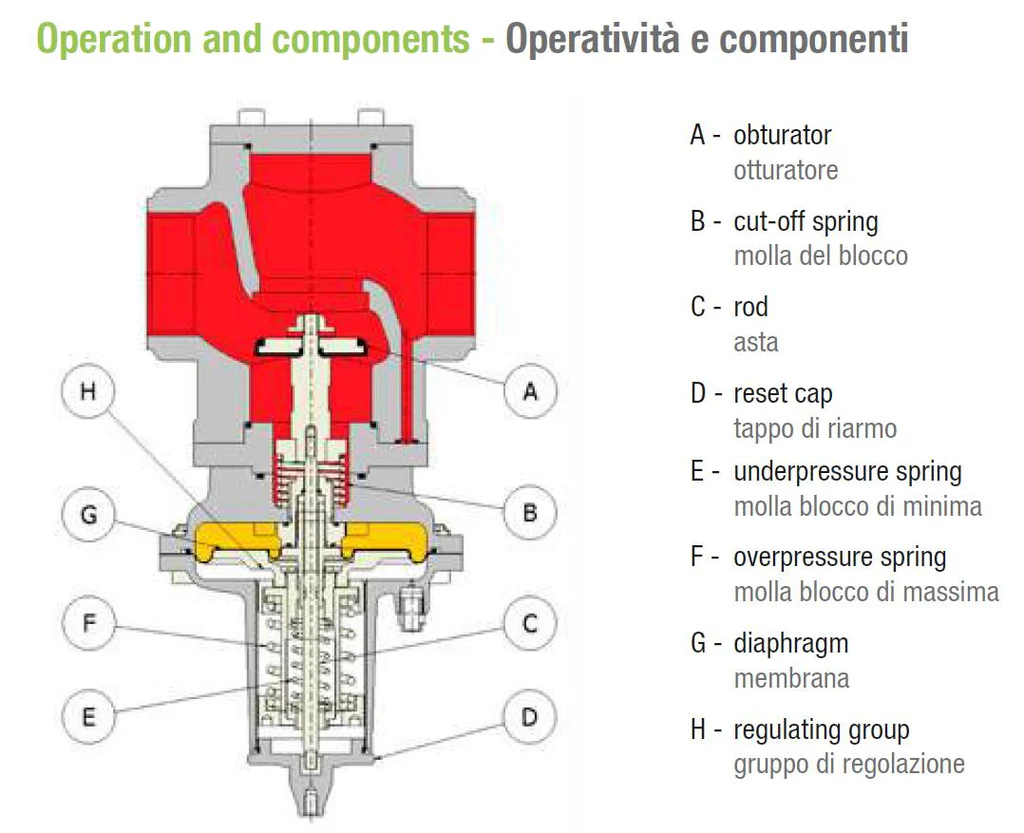

| Key Features & Benefits | • Compliance with EN 14382:2009 – Meets strict gas safety standards • Dual Protection System: UPSO (Under Pressure Shut-Off) + OPSO (Over Pressure Shut-Off) • Multiple Connection Options: Threaded (EN 10226/NPT) or Flanged (UNI PN / ANSI) • Compact & Easy Maintenance: Top-entry design for quick servicing • Wide Gas Compatibility: Natural gas, LPG, town gas, nitrogen, air, and other non-corrosive gases |
