Ito Koki Gas Pressure Regulator LAX-20C
| Brand | Ito Koki |
|---|---|
| Model | LAX-20C / LAX-20C-R |

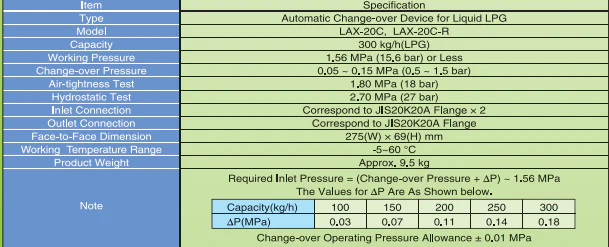

| Technical Specifications | • Type: Automatic Changeover Device for Liquid LPG • Capacity: 300 kg/h (LPG) • Working Pressure: 1.56 MPa (15.6 bar) or less • Changeover Pressure: 0.05 ~ 0.15 MPa (0.5 – 1.5 bar) • Airtightness Test: 1.80 MPa (18 bar) • Hydrostatic Test: 2.70 MPa (27 bar) • Inlet Connection: JIS20K20A Flange × 2 • Outlet Connection: JIS20K20A Flange • Compliance: Built to strict LPG safety standards • Working Temperature Range: -5°C ~ +60°C |
| Dimensions & Weight | • Face-to-Face Dimension: 275(W) × 69(H) mm • Net Weight: ~9.5 kg • Packaging Weight (with accessories): ~10.0 kg |
| Performance Metrics | • Required Inlet Pressure = (Changeover Pressure + ΔP) ≤ 1.56 MPa • ΔP (MPa) values by Capacity: – 100 kg/h → 0.03 MPa – 150 kg/h → 0.07 MPa – 200 kg/h → 0.11 MPa – 250 kg/h → 0.14 MPa – 300 kg/h → 0.18 MPa • Changeover Operating Pressure Allowance: ±0.01 MPa |
| Key Features & Benefits | • Breakthrough cam mechanism ensures seamless automatic switching • Low changeover pressure reduces LPG waste and costs • Automatic valve switching minimizes action errors and enhances accuracy • Compact and lightweight for easy installation and maintenance • Large semispherical indicator improves valve action visibility • Ergonomic handle makes supply direction clear and easy to adjust • LAX-20C-R model includes auto-notification via telephone circuit for cylinder replacement • Designed for reliable LPG supply in industrial and commercial applications |
