Pietro Fiorentini MM G10-G16 Diaphragm Gas Meter
| Brand | Pietro Fiorentini |
| Model | MM G10–G16 Diaphragm Gas Meter |
| Construction | Pressed zinc-coated steel plate |
| Measurement Accuracy | Synthetic diaphragm |
| Pulse Output | Single reed; Double reed with anti-tamper; ATEX-certified double reed with anti-tamper switch |
| Surface Protection | Polyester powder-coated, oven-cured |
| Temperature Resistance | EN1359:1998 / A1:2006 – 6.5.5 compliant |
| Operating Temperature | -25°C to +55°C |
| Accuracy Class | Class 1.5 |
| Certifications | 2014/34/UE; EN1359:1998/A1:2006; OIML compliant |
| Application | Industrial, commercial, and residential metering |

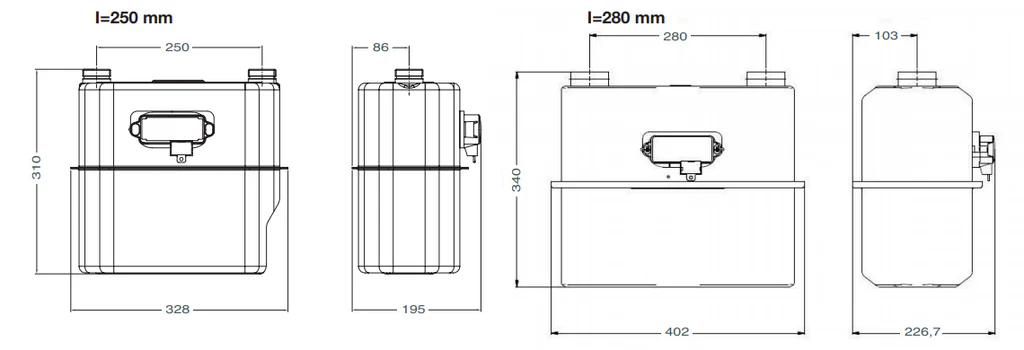

| Dimensions (MM G10) | A = 250 mm, B = 310 mm, C = 328 mm, D = 195 mm, E = 86 mm |
| Weight (MM G10) | 5.15 kg (without packaging), 5.5 kg (with packaging) |
| Dimensions (MM G16) | A = 280 mm, B = 340 mm, C = 402 mm, D = 226.7 mm, E = 103 mm |
| Weight (MM G16) | 6.4 kg (without packaging), 6.9 kg (with packaging) |
| Key Benefits | High precision, anti-tamper features, ATEX-certified pulse emitter, long service life |
