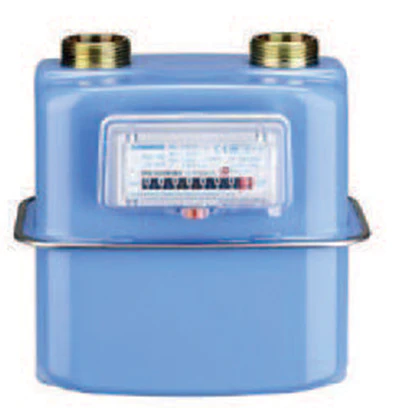

ZENNER Atmos Diaphragm Compact Type Gas Meter G1.6MS / G2.5MS
| Brand | ZENNER |
| Model | Atmos® Diaphragm Compact Type Gas Meter (G1.6MS / G2.5MS) |
| Certification | MID Certified by NMi, EN1359 Compliant |
| Key Features | Integrated error curve adjustment system 0.8 dm³ cyclic volume Long-term accuracy Fire-resistant (HTB) up to 0.1 bar Wide operating temperature: -25°C to +55°C Anti-corrosion design with galvanized steel housing Low starting flow ≤ 1 dm³/h Retrofittable with pulser for remote monitoring |
| Available Sizes & Flow Rates | G1.6MS: 0.016 m³/h – 2.5 m³/h G2.5MS: 0.025 m³/h – 4 m³/h |
| Compatible Gas Media | Natural Gas, Town Gas, Biogas, LPG, Methane |
| Housing Material | Galvanized steel sheet, powder-coated for corrosion resistance |

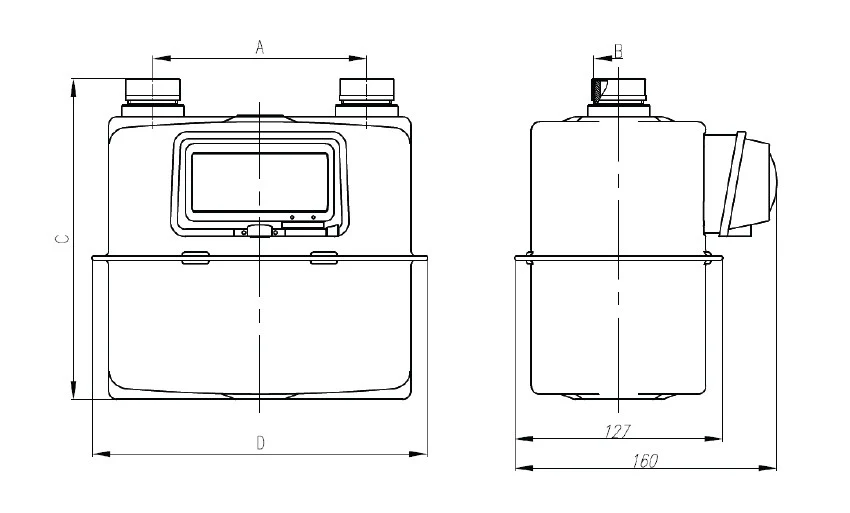

| Dimensions (G1.6MS) | Length: 110 mm, Depth: 196 mm, Center Distance: 110 mm |
| Dimensions (G2.5MS) | Length: 130 mm, Depth: 196 mm, Center Distance: 130 mm |
| Weight | Approx. 1.55 kg |
| Applications | Residential, commercial, and industrial gas metering Accurate measurement of natural gas, LPG, biogas, methane Suitable for smart metering and remote monitoring systems |
