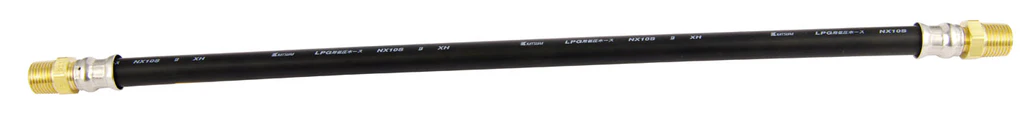

Katsura Yokohama Pigtail

Brand	Katsura
Model	Pigtail Series (POL / Liquid / Vapor)
Technical Specifications	Features: • Easy handling & reduced malfunctions • Swivel mechanism to prevent twisting • Safety reset feature for safe use Pigtail – POL (Propane & LPG) Length: 650mm / 1050mm Inlet Connection: POL Male Screwed (Handtight) / CGA510 Outlet Connection: R¼ (Male Screwed) Working Method: Tensile Strength Pigtail – Liquid (Male × Male) Length: 2ft / 3ft / 4ft Inlet Connection: R¼ (Male Screwed) Outlet Connection: R¼ (Male Screwed Adjustable) Inner Diameter: 10.0 ± 0.5 mm Outer Diameter: 17.0 ± 0.5 mm Pigtail – Vapor (Male × Female) Length: 2ft / 3ft / 4ft Inlet Connection: R¼ (Male Screwed Adjustable) Outlet Connection: TU (Female Screwed) Inner Diameter: 10.0 ± 0.5 mm Outer Diameter: 17.0 ± 0.5 mm
Gas	Propane / LPG / Liquid Gas / Vaporized Gas
Dimension & Weight	Lengths: 650mm, 1050mm, 2ft, 3ft, 4ft Approx. Weight: 0.6 – 1.2 kg (depending on length & variant)
